STC

A unique range of IP65 rated, 32mm diameter, LED Stack Lights.

Unobtrusive yet definitive and incorporating high brilliance LED illumination, these are ideal for industrial, fire, security and automation markets.

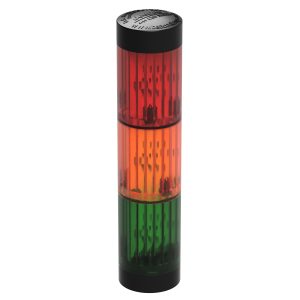

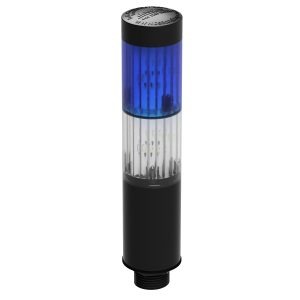

The STC/LED range is manufactured either as a 2-high Red/Green or 3-high Red/Amber/Green device. Other colour combinations from 1-high to 5-high are available on request.  2-high versions can also be supplied with a fitted cable and terminated with a standard M12 4-pin connector.

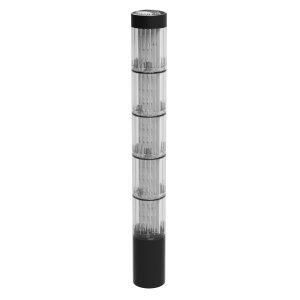

STC/AUTOSIGNAL, available in 3-high and 5-high variants, provides a full-tower display no matter how many signals are active at one time.

Moulded totally in polycarbonate, these LED Stack Lights bring an attractive modern image and high brightness signalling, with minimum overall size to the factory automation, visual indication and machinery building sector.

Mounting by single M10 hole, with anti-rotation offset spigot (optional use).
M20 adapter is available which allows easy mounting into conventional conduit entries.
230V AC, 115V AC or 24V UC (AC or DC) models.
Low maintenance and low power consumption.
Ready-connected cables for installation.
