deegee XFH IP65 Xenon Strobe DH Beacon 11J 230Vac White Base 225mm x 175mm dia. White
This industrial, vehicle, and security xenon strobe warning device features a high-top design, with an ABS base and polycarbonate dome lens. The base is available in White (standard) or Black, with lens colours in Red, Amber, Green, Blue, or Clear. Onboard switches offer four selectable flash rates. It comes in 11 Joule and 24 Joule models, supporting 12Vuc, 24Vuc, 115Vac, or 230Vac power sources (uc = ac or dc), and can be configured with Double-flash or Single-flash patterns.
Additional information
| Weight (kg) | 1.356 |
|---|---|
| Nominal Supply Voltage (V) | 230 |
| Voltage Min (V) | 196 |
| Voltage Max (V) | 264 |
| Supply Type | AC |
| Lens Colour | Clear |
| Signal Colour | White |
| Base Colour | White |
| Height (mm) | 225 |
| Diameter (mm) | 175 |
| Size (mm) | 225 x 175 dia. |
| IP Rating | IP65 |
| GTIN | 5060995743349 |
| Mounting method | Surface mounting |
| User Selectable Functions | 4 Flash Rates |
| Flash Energy (J) | 11 |
| Nominal Current Draw (A) | 0.11 |
| Light Source | Xenon |

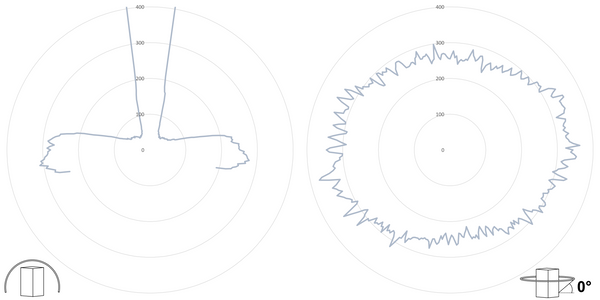

| Luminous Intensity (cd) | 375 |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85319000 |
| Fuse (A) | 0.5 |
| Fuse Type | TD |
| Fuse (Internal or External) | Internal |
| Country of origin | GB |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 8th August 2024 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
| Factory Set Flashing Frequency (FPM) | 60 |
| Number of Flash Functions | 4 |
| Temperature Limits (C) | -20 to +55 |
| Base Material | ABS |
| Lens Material | Polycarbonate |
