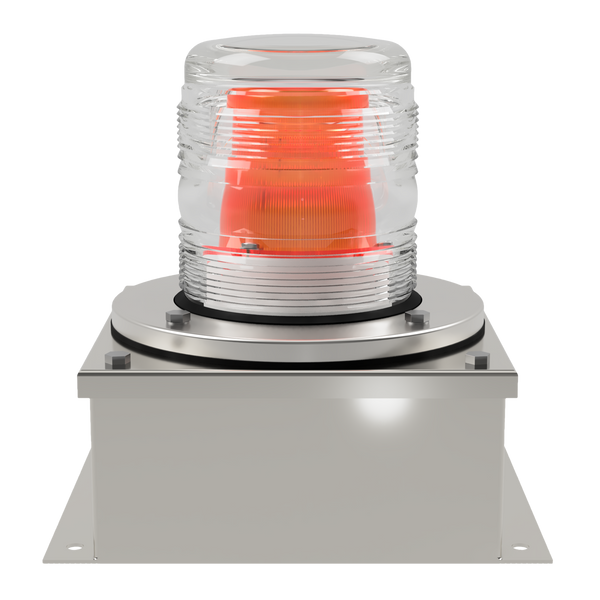

deegee XFF IP65 Xenon Strobe Double Flash Beacon 12Vuc 155mm x 155mm x 192mm Amber
A robust xenon beacon with a glass lens, made from AISI316 stainless steel and equipped with chemical-resistant seals and stainless steel fixings. This beacon is perfect for harsh environments like paper manufacturing, where acid-wash clean-downs are routine. It features a clear glass lens with internal polycarbonate lenses in Red, Amber, Green, Blue, Yellow, or Clear. Installers can choose from four flash rates using onboard switches. The beacon is available in 11 Joule models that support 12Vuc, 24Vuc, 115Vac, or 230Vac power supplies (uc = ac or dc), with Double-flash or Single-flash signalling patterns. The beacon is provided fully boxed, with additional 5 Joule models for use with 10-100Vdc (20-70Vac) and 100-130Vdc supplies.
Additional information
| Weight (kg) | 3.4 |
|---|---|
| Nominal Supply Voltage (V) | 12 |
| Voltage Min (V) | 11 |
| Voltage Max (V) | 14 |
| Supply Type | UC |
| Lens Colour | Amber |
| Signal Colour | Amber |
| Length (mm) | 155 |
| Width (mm) | 155 |
| Height (mm) | 192 |
| Size (mm) | 155 x 155 x 192 |
| IP Rating | IP65 |
| GTIN | 5060995742502 |
| Mounting method | Surface mounting |
| User Selectable Functions | 4 Flash Rates |
| Flash Energy (J) | 11 |
| Nominal Current Draw (A) | 1.58 |
| Light Source | Xenon |
| Luminous Intensity (cd) | 80 |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85319000 |
| Fuse (A) | 2 |
| Fuse Type | TD |
| Fuse (Internal or External) | Internal |
| Country of origin | GB |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 8th August 2024 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
| Factory Set Flashing Frequency (FPM) | 60 |
| Number of Flash Functions | 4 |
| CE Approved | Yes |
| Temperature Limits (C) | -20 to +55 |
| Base Material | Stainless Steel |
| Lens Material | Glass |
