deegee XFC IP69K Xenon Strobe Beacon 5J 12-24Vdc White Base 85mm x 94mm dia. Amber
Xenon Beacons, or “Strobes,” were once considered a breakthrough in visual warning technology. The gas discharge method allows for high-intensity light with low energy input. The XFC is the latest IP69K-rated model, designed to meet current needs. Used globally, this beacon is updated regularly based on market trends. Xenon beacons are more reliable than filament lamps, requiring minimal maintenance.
Additional information
| Nominal Supply Voltage (V) | 12-24 |
|---|---|
| Voltage Min (V) | 11 |
| Voltage Max (V) | 27 |
| Supply Type | DC |
| Lens Colour | Amber |
| Signal Colour | Amber |
| Base Colour | White |
| Height (mm) | 85 |
| Diameter (mm) | 94 |
| Size (mm) | 85mm x 94mm dia. |
| IP Rating | IP69K |
| Mounting method | Surface mounting |
| Flash Energy (J) | 5 |
| Light Source | Xenon |
| Factory Set Flashing Frequency (FPM) | 60 |
| Temperature Limits (C) | -20 to +55 |
| Base Material | ABS |
| Lens Material | Polycarbonate |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Commodity Code | 85318070 |
| GTIN | 5056711301283 |

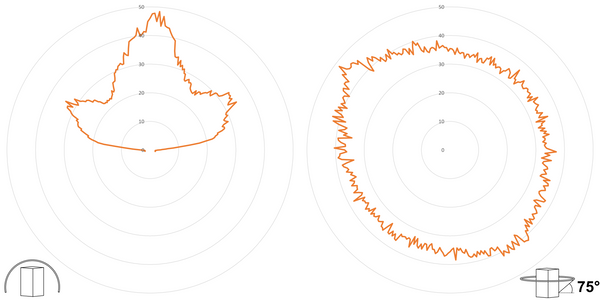

| Luminous Intensity (cd) | 65 |
| Fuse (A) | 1 |
| Fuse Type | TD |
| Fuse (Internal or External) | External |
| Country of origin | GB |
| Status | Active |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 8th August 2024 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
| Weight (kg) | 0.2710 |
| Nominal Current Draw (A) | 0.270-0.292 |
| Number of Flash Functions | 1 |
