deegee PSU IP65 Pulsed LED Beacon 24-36Vdc Black Base 150mm x 150mm x 151mm Red

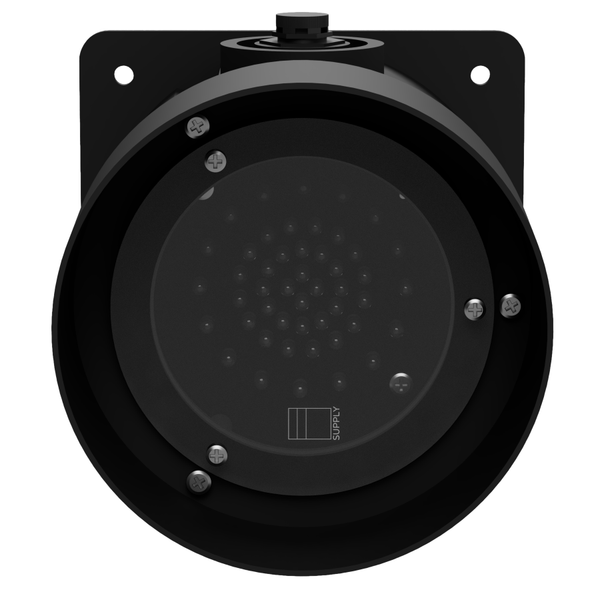

Pulsed LED uni-directional beacon. Multiple units can connect together to form one traffic light style indictor; comprising a robust black polycarbonate base and hood with plain clear polycarbonate lens. Selectable static or flashing operation via internal jumper. Clear-package LEDs and clear lens eliminates the problem of the indicator appearing to be “ON” when struck by direct sunlight. Hood assembly is fitted to the base using a gasket and three screws.
Additional information
| Nominal Supply Voltage (V) | 24-36 dc / 24 ac |
|---|---|
| Voltage Min (V) | 18 |
| Voltage Max (V) | 40 dc / 28 ac |
| Supply Type | DC / AC |
| Lens Colour | Clear |
| Signal Colour | Red |
| Base Colour | Black |
| Length (mm) | 150 |
| Width (mm) | 150 |
| Height (mm) | 151 |

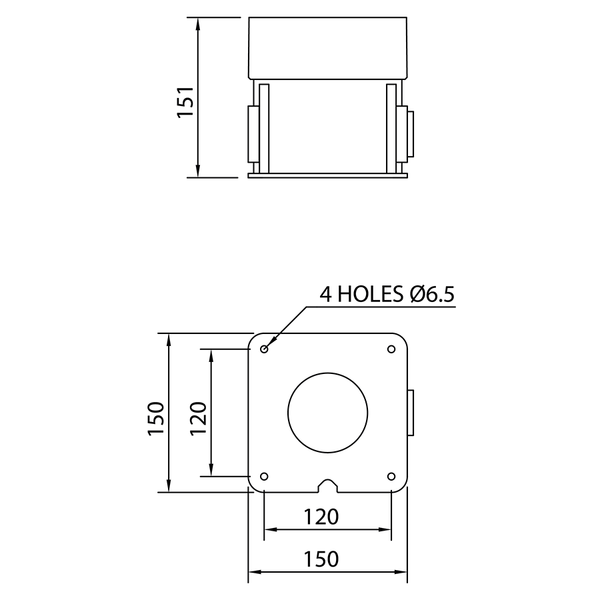

| Size (mm) | 150mm x 150mm x 151mm |
| IP Rating | IP65 |
| Mounting method | Surface mounting |
| User Selectable Functions | Pulsed/Static |
| Light Source | LED |
| Temperature Limits (C) | -20 to +55 |
| Base Material | Polycarbonate |
| Lens Material | Polycarbonate |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Commodity Code | 85318070 |
| GTIN | 5060995749433 |

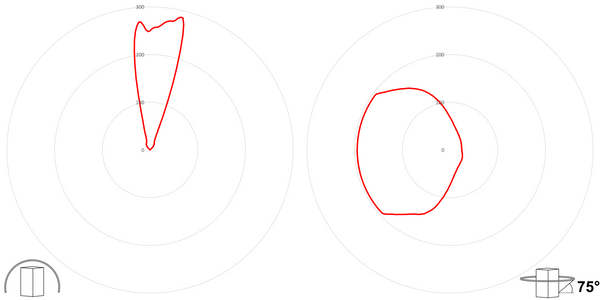

| Luminous Intensity (cd) | 285 |
| Fuse (A) | 1 |
| Fuse Type | TD |
| Fuse (Internal or External) | Internal |
| Weight (kg) | 0.70 |
| Nominal Current Draw (A) | 0.288 |
| Factory Set Flashing Frequency (FPM) | 40 |
| Number of Flash Functions | 2 |
| Country of origin | GB |
| Status | Active |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 8th August 2024 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
