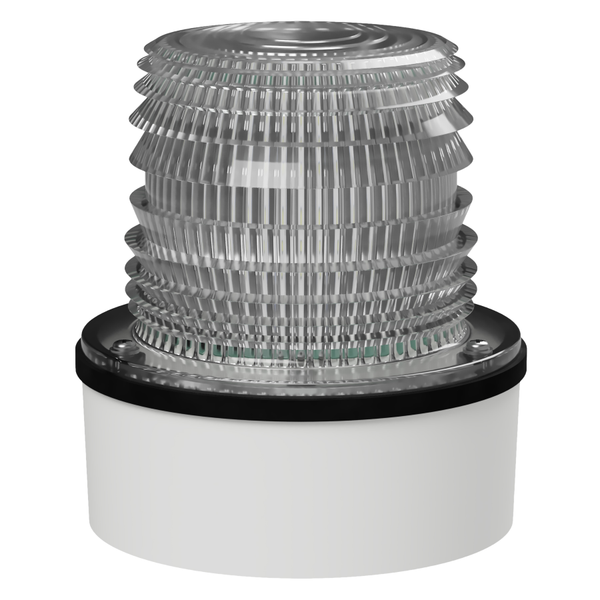

deegee PSL IP65 Pulsed Eco-LED Beacon 24-230Vuc White Base 133mm x 123mm dia. Clear
Designed with the latest LED technology, our Pulsed LED Beacon Lamps offer a long-lasting, low-power visual warning signal. This dual-function LED beacon has two modes: Static (non-flashing) and Standard Pulse (120 flashes per minute or 2Hz). The circuitry is fixed to the base, allowing easy wiring access through the terminal block. The lens is secured to the base with three stainless steel screws.
Additional information
| Weight (kg) | 0.331 |
|---|---|
| Nominal Supply Voltage (V) | 24-230 |
| Voltage Min (V) | 22 |
| Voltage Max (V) | 264 |
| Supply Type | UC |
| Lens Colour | Clear |
| Signal Colour | Clear |
| Base Colour | White |
| Height (mm) | 133 |
| Diameter (mm) | 123 |
| Size (mm) | 133mm x 123mm dia. |
| IP Rating | IP65 |
| Mounting method | Surface mounting |
| User Selectable Functions | Pulsed, Static |
| Nominal Current Draw (A) | 0.021-0.109 |
| Light Source | LED |

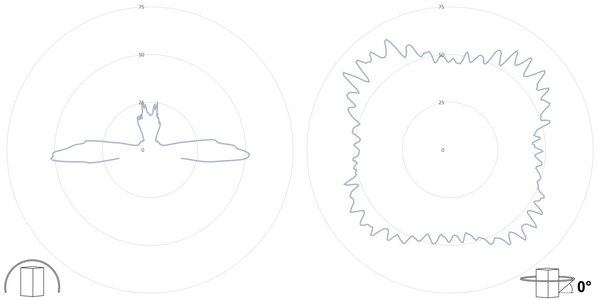

| Luminous Intensity (cd) | 69 |
| Factory Set Flashing Frequency (FPM) | 120 |
| Number of Flash Functions | 2 |
| CE Approved | Yes |
| Temperature Limits (C) | -20 to +55 |
| Base Material | ABS |
| Lens Material | Polycarbonate |
| Fuse (A) | 0.5 |
| Fuse Type | TD |
| Fuse (Internal or External) | External |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85318070 |
| GTIN | 5056711302716 |
| Country of origin | GB |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 8th August 2024 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
