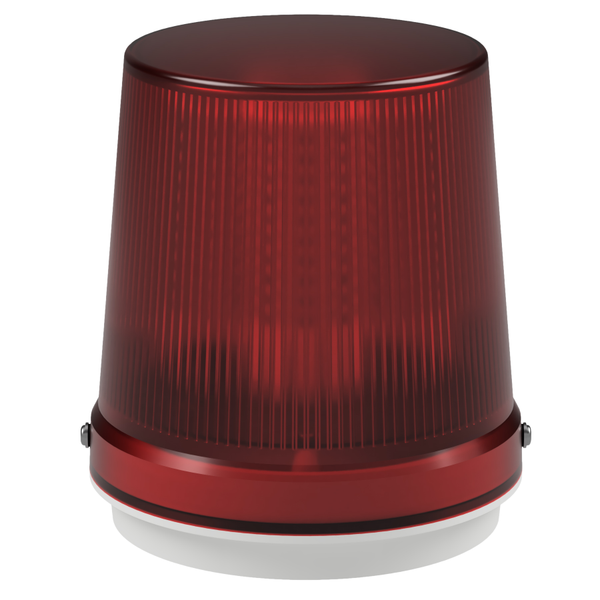

deegee PSK IP65 Pulsed LED Beacon 12Vdc White Base 185mm x 165mm dia. Red
Utilizing the latest LED technology, our Pulsed LED Beacon Lamps deliver a long-lasting, low-power visual warning signal. The beacon offers eight versatile modes: Static (non-flashing), Standard Pulse (120fpm or 2Hz), Slow Pulse (60fpm or 1Hz), Fast Pulse (240fpm or 4Hz), Triple Flash (three pulses repeating twice per second), Random Flash (disordered pulses repeating once per second), Strobe (one pulse per second), and Revolving (simulated rotation at 120rpm).
Additional information
| Weight (kg) | 0.682 |
|---|---|
| Nominal Supply Voltage (V) | 12 |
| Voltage Min (V) | 10 |
| Voltage Max (V) | 14 |
| Supply Type | DC |
| Lens Colour | Red |
| Signal Colour | Red |
| Base Colour | White |

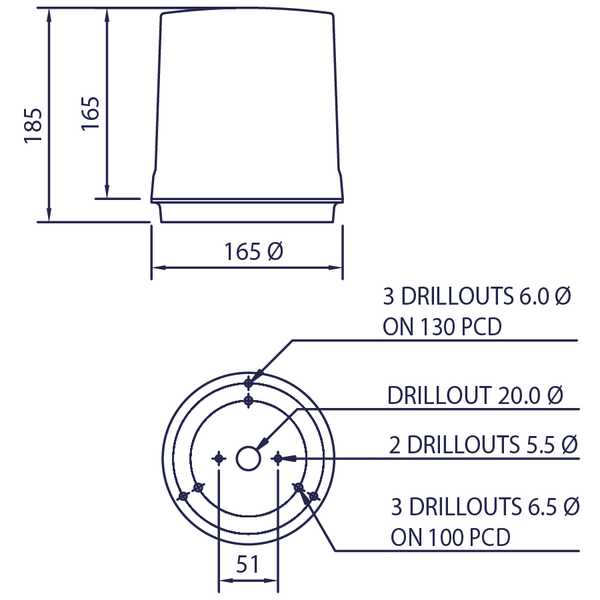

| Height (mm) | 185 |
| Diameter (mm) | 165 |
| Size (mm) | 185mm x 165mm dia. |
| IP Rating | IP65 |
| Mounting method | Surface mounting |
| User Selectable Functions | 8-Function |
| Nominal Current Draw (A) | 0.515 |
| Light Source | LED |
| Luminous Intensity (cd) | 44 |
| Number of Flash Functions | 8 |
| CE Approved | Yes |
| Temperature Limits (C) | -20 to +55 |
| Base Material | ABS |
| Lens Material | Polycarbonate |
| Fuse (A) | 1 |
| Fuse Type | TD |
| Fuse (Internal or External) | Internal |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85318070 |
| GTIN | 5056711302464 |
| Marketing Bullet 1 | Mounting bracket available |
| Marketing Bullet 2 | Can be mounted in any orientation |
| Marketing Bullet 3 | Continuously rated |
| Marketing Bullet 4 | Incorporates an extra bright 120 wide-angle LED array |
| Marketing Bullet 5 | 360° light output around the vertical axis |
| Country of origin | GB |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 8th August 2024 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
