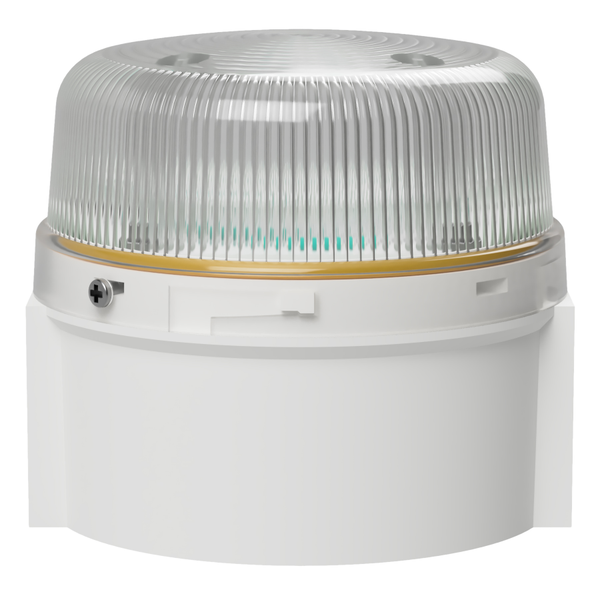

deegee PSC IP69K High-Intensity LED Beacon 55-230Vuc White Base 85mm x 94mm dia. Clear
Our Pulsed LED Beacon Lamps use the latest LED technology to offer a long-life, low-power visual warning signal. The multi-function beacon provides four modes: Static (non-flashing), Standard Pulse (120fpm, 2Hz), Triple Flash, and Random Flash. Units from Series B and C, along with the IAS-C Sounder, can be combined to create a fully integrated signaling system. The circuitry is securely attached to the base, with easy access to the wiring terminal block. Lenses are mounted with a bayonet fitting and O-ring seal, secured by a grub screw, with no external fasteners, and all connections protected by O-rings.
Additional information
Weight (kg) | 0.18 |
---|---|
Nominal Supply Voltage (V) | 55-230 |
Voltage Min (V) | 45(ac)/55(dc) |
Voltage Max (V) | 264 |
Supply Type | UC |
Lens Colour | Clear |
Signal Colour | Clear |
Base Colour | White |
Height (mm) | 85 |
Diameter (mm) | 94 |
Size (mm) | 85mm x 94mm dia. |
IP Rating | IP69K |
Mounting method | Surface mounting |
User Selectable Functions | Pulsed, Static, Triple, Random |
Nominal Current Draw (A) | 0.019 |
Light Source | LED |
Luminous Intensity (cd) | 450 |
Number of Flash Functions | 4 |
CE Approved | Yes |
Temperature Limits (C) | -20 to +55 |
Base Material | ABS |
Lens Material | Polycarbonate |
Fuse (A) | 0.5 |
Fuse Type | TD |
Fuse (Internal or External) | External |
Order Unit | 1 |
MOQ | 1 |
Quantity Interval | 1 |
Status | Active |
Commodity Code | 85318070 |
GTIN | 5056711302846 |
Marketing Bullet 1 | Multi-voltage, allowing less stock holding |
Marketing Bullet 2 | Forward-facing focussed beam for long-range signalling. |
Marketing Bullet 3 | Clear lens with coloured LEDs to avoid signal uncertainty in direct sunlight. |
Marketing Bullet 4 | Protective guard and mounting bracket available |
Marketing Bullet 5 | Can be mounted in any orientation |
Country of origin | GB |
RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
RoHS Last Verified Date | 8th August 2024 |
SVHC | No SVHC present |
SVHC Candidate List Date | 27th June 2024 |
