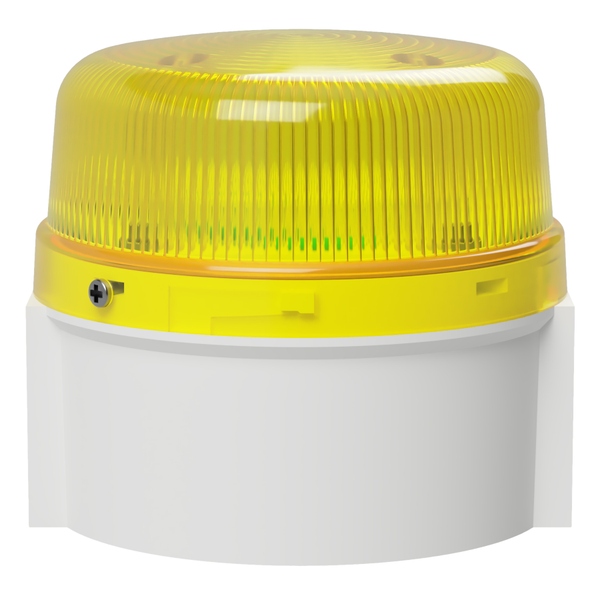

deegee PSC IP69K High-Intensity LED Beacon 12-36Vdc White Base 85mm x 94mm dia. Yellow
Designed with the latest LED technology, our Pulsed LED Beacon Lamps offer a low-power, long-lasting visual warning signal. The multi-function LED beacon has four modes: Static (non-flashing), Standard Pulse (120fpm, 2Hz), Triple Flash, and Random Flash. Units from Series B and C, along with the IAS-C Sounder, can be combined into an integrated signaling system. The circuitry is fixed to the base, and the terminal block is easily accessible for wiring. Lenses are secured to the base with a bayonet fitting and O-ring seal, held by a single grub screw, with no external fastenings, and all connections sealed with O-rings.
Additional information
| Weight (kg) | 0.172 |
|---|---|
| Nominal Supply Voltage (V) | 12-36 |
| Voltage Min (V) | 10 |
| Voltage Max (V) | 40 |
| Supply Type | DC |
| Lens Colour | Yellow |
| Signal Colour | Yellow |
| Base Colour | White |
| Height (mm) | 85 |
| Diameter (mm) | 94 |
| Size (mm) | 85mm x 94mm dia. |
| IP Rating | IP69K |
| Mounting method | Surface mounting |
| User Selectable Functions | Pulsed, Static, Triple, Random |
| Nominal Current Draw (A) | 0.111 |
| Light Source | LED |
| Luminous Intensity (cd) | 255 |
| Number of Flash Functions | 4 |
| CE Approved | Yes |
| Temperature Limits (C) | -20 to +55 |
| Base Material | ABS |
| Lens Material | Polycarbonate |
| Fuse (A) | 0.5 |
| Fuse Type | TD |
| Fuse (Internal or External) | External |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85318070 |
| GTIN | 5056711302785 |
| Marketing Bullet 1 | Multi-voltage, allowing less stock holding |
| Marketing Bullet 2 | Forward-facing focussed beam for long-range signalling. |
| Marketing Bullet 3 | Protective guard and mounting bracket available |
| Marketing Bullet 4 | Can be mounted in any orientation |
| Country of origin | GB |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 8th August 2024 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
