deegee PSB IP66 Flashing Tri-Colour LED Beacon 115-230V White Base 135mm x 94mm dia. R/A/G
Our Pulsed LED Beacon Lamps incorporate the latest LED technology to deliver a low-power, long-lasting visual warning signal. This multi-function LED beacon offers 8 modes: Static (non-flashing), Standard Pulse (120fpm at 2Hz), Slow Pulse (60fpm at 1Hz), Fast Pulse (240fpm at 4Hz), Triple Flash (three flashes repeating twice per second), Random Flash (irregular pulses repeating once per second), Strobe (1 pulse per second), and Revolving (simulated rotation at 120rpm). Units from Series B and Series C, along with the matching IAS-C Sounder, can be combined to form an integrated signalling system. The circuitry is securely mounted to the base, providing easy access to the terminal block for wiring. The lenses are attached using a bayonet fitting and an O-ring seal, held in place by a single securing grub screw. No other external fasteners are needed, and all enclosure connections are sealed with O-rings.
Additional information
| Country of origin | GB |
|---|---|
| Weight (kg) | 0.258 |
| Nominal Supply Voltage (V) | 115-230 |
| Voltage Min (V) | 98 |
| Voltage Max (V) | 264 |
| Supply Type | UC |
| Lens Colour | Clear |
| Signal Colour | Red/Amber/Green |
| Base Colour | White |
| Height (mm) | 135 |
| Diameter (mm) | 94 |
| Size (mm) | 135 x 94 dia. |
| IP Rating | IP66 |
| Mounting method | Surface |
| User Selectable Functions | Static, Flash, Triple, Quintuple |
| Nominal Current Draw (A) | 0.038 |
| Light Source | LED |

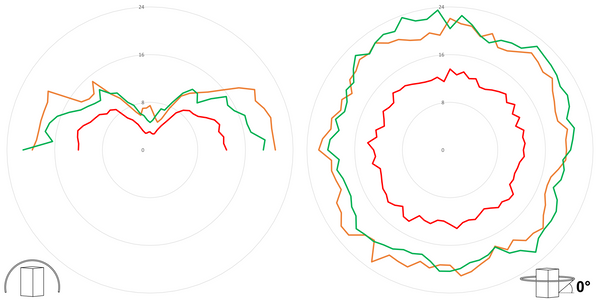

| Luminous Intensity (cd) | 13 (Red) / 22 (Amber) / 23 (Green) |
| Temperature Limits (C) | -20 to +55 |
| Base Material | ABS |
| Lens Material | Polycarbonate |
| Fuse (A) | 0.5 |
| Fuse Type | TD |
| Fuse (Internal or External) | External |
| Marketing Bullet 1 | Extremely versatile – clear LEDS allow lenses to determine colour, therefore less stock holding is required |
| Marketing Bullet 2 | Protective guard and mounting bracket available |
| Marketing Bullet 3 | Can be mounted in any orientation |
| Marketing Bullet 4 | High powered LED |
| Marketing Bullet 5 | 360° light output around the vertical axis |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85318070 |
| GTIN | 5056711302860 |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 8th August 2024 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
