deegee MIH IP65 Traffic Light 24-36Vdc with Black Base 300mm x 150mm x 151mm Amber / Green
A dual pulsed LED uni-directional status indicator, combining Amber and Green lights in a traffic light-style configuration. The unit features a durable black polycarbonate base and hood with plain clear polycarbonate lenses. An internal jumper allows for selectable static or flashing operation. Clear-package LEDs paired with clear lenses prevent the indicator from appearing illuminated under direct sunlight. The hood assembly is securely attached to the base using a gasket and three screws.
Additional information
| Nominal Supply Voltage (V) | 24-36 |
|---|---|
| Voltage Min (V) | 21 |
| Voltage Max (V) | 41 |
| Supply Type | DC |
| Lens Colour | Clear |
| Signal Colour | Amber / Green |
| Base Colour | Black |
| Length (mm) | 300 |
| Width (mm) | 150 |
| Height (mm) | 151 |
| Size (mm) | 300mm x 150mm x 151mm |
| IP Rating | IP65 |
| Mounting method | Surface mounting |
| User Selectable Functions | Pulsed/Static |
| Housing colour | Black |
| Weight (kg) | 1.4970 |
| Nominal Current Draw (A) | 0.217 |
| Light Source | LED |
| Number of Indicators | 2 |

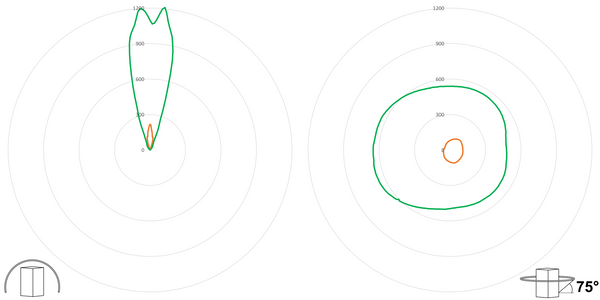

| Luminous Intensity (cd) | 215 (Amber) / 1200 (Green) |
| Factory Set Flashing Frequency (FPM) | Static |
| Number of Flash Functions | 2 |
| Temperature Limits (C) | -20 to +55 |
| Base Material | Polycarbonate |
| Lens Material | Polycarbonate |
| Fuse (A) | 1 |
| Fuse Type | TD |
| Fuse (Internal or External) | Internal |
| Country of origin | GB |
