deegee MIH IP65 Traffic Light 115-230Vuc with Black Base 450mm x 150mm x 151mm Red / White / Green
Three Pulsed LED uni-directional Status Indicators connected together to form one Red/Green/Clear traffic light style indictor.
Unit comprises a robust black polycarbonate base and hood with plain clear polycarbonate lenses.
Selectable static or flashing operation via internal jumper.
Clear-package LEDs and clear lens eliminates the problem of the indicator appearing to be “ON” when struck by direct sunlight.
Hood assembly is fitted to the base using a gasket and three screws.
Additional information
| Nominal Supply Voltage (V) | 115-230 |
|---|---|
| Voltage Min (V) | 98 |
| Voltage Max (V) | 264 |
| Supply Type | UC |
| Lens Colour | Clear |
| Signal Colour | Red / White / Green |
| Base Colour | Black |
| Length (mm) | 450 |
| Width (mm) | 150 |
| Height (mm) | 151 |
| Size (mm) | 450mm x 150mm x 151mm |
| IP Rating | IP65 |
| Mounting method | Surface mounting |
| User Selectable Functions | Pulsed/Static |
| Housing colour | Black |
| Weight (kg) | 2.8500 |
| Nominal Current Draw (A) | 0.043 |
| Light Source | LED |
| Number of Indicators | 3 |

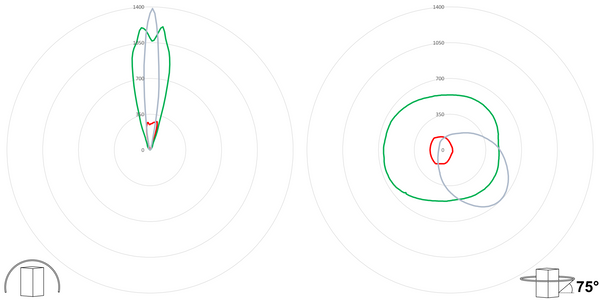

| Luminous Intensity (cd) | 285 (Red) / 1350 (White) / 1200 (Green) |
| Factory Set Flashing Frequency (FPM) | Static |
| Number of Flash Functions | 2 |
| Temperature Limits (C) | -20 to +55 |
| Base Material | Polycarbonate |
| Lens Material | Polycarbonate |
| Fuse (A) | 1 |
| Fuse Type | TD |
| Fuse (Internal or External) | Internal |
| Country of origin | GB |
