deegee IPN/006 IP65 ‘STOP’ Traffic Light 24Vdc Black Base 200mm x 150mm x 80mm Red
Compact LED ‘Stop’ Signal. Perfect for use as an LED dock or loading bay light. Install one unit indoors for internal staff and another outdoors for lorry drivers to ensure clear, effective signalling. Features a simple three-wire connection for easy system integration, with energy-efficient, long-life LEDs that reduce maintenance and power costs, offering a more economical solution than traditional lamp-based
Additional information
| Country of origin | GB |
|---|---|
| Weight (kg) | 0.668 |
| Nominal Supply Voltage (V) | 24 |
| Voltage Min (V) | 21 |
| Voltage Max (V) | 27 |
| Supply Type | DC |
| Lens Colour | Clear |
| Signal Colour | Red |
| Base Colour | Black |
| Length (mm) | 200 |
| Width (mm) | 150 |
| Height (mm) | 80 |

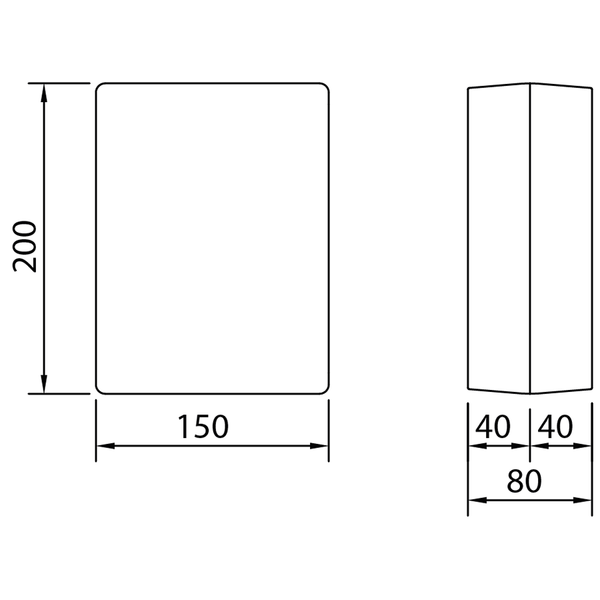

| Size (mm) | 200 x 150 x 80 |
| IP Rating | IP65 |
| Mounting method | Surface mounting |
| User Selectable Functions | Dimmable (50%, 25%, 10%, 5%) |
| Nominal Current Draw (A) | 0.239 |
| Light Source | LED |

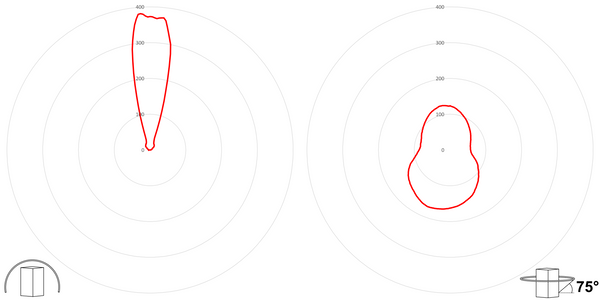

| Luminous Intensity (cd) | 380 |
| Temperature Limits (C) | -20 to +55 |
| Base Material | Polycarbonate |
| Lens Material | Polycarbonate |
| Fuse (A) | 1 |
| Fuse Type | TD |
| Fuse (Internal or External) | Internal |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85318070 |
| Number of Indicators | 1 |
| CE Approved | Yes |
| Marketing Bullet 1 | Ideal for loading bays |
| Marketing Bullet 2 | Dimmable |
| Marketing Bullet 3 | Continuously rated |
| GTIN | 5056711303089 |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 8th August 2024 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
