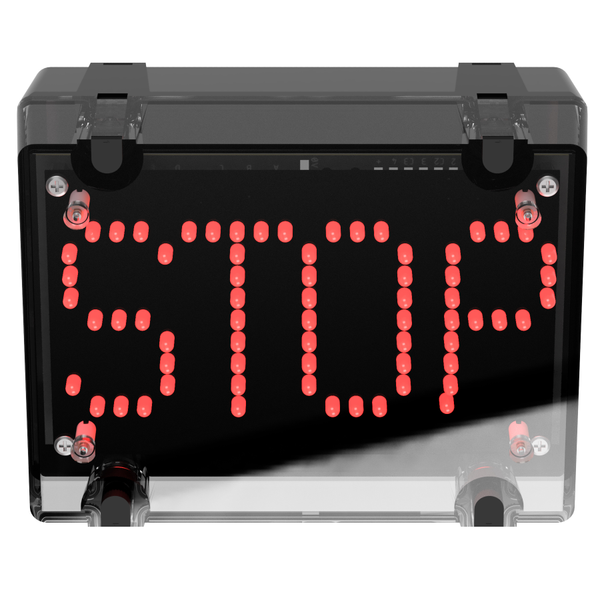

deegee IPN/006 IP65 ‘STOP’ Traffic Light 115-230Vuc Black Base 200mm x 150mm x 80mm Red
Compact LED ‘Stop’ Signal
Ideal LED loading bay light or LED dock light: Mount one unit inside and one unit outside to provide clear signalling to both internal staff and outside lorry drivers.
Simple three-wire connection for straightforward integration with your system.
Long-life LEDs = less maintenance; Low-power = lower energy costs which together mean much lower operational costs than traditional lamped units.
Additional information
Weight (kg) | 0.836 |
---|---|
Nominal Supply Voltage (V) | 115-230 |
Voltage Min (V) | 98 |
Voltage Max (V) | 264 |
Supply Type | UC |
Lens Colour | Clear |
Signal Colour | Red |
Base Colour | Black |
Length (mm) | 200 |
Width (mm) | 150 |
Height (mm) | 80 |
Size (mm) | 200 x 150 x 80 |
IP Rating | IP65 |
Mounting method | Surface mounting |
User Selectable Functions | Dimmable (50%, 25%, 10%, 5%) |
Nominal Current Draw (A) | 0.05-0.09 |
Light Source | LED |
Number of Indicators | 1 |
Luminous Intensity (cd) | 380 |
CE Approved | Yes |
Temperature Limits (C) | -20 to +55 |
Base Material | Polycarbonate |
Lens Material | Polycarbonate |
Fuse (A) | 1 |
Fuse Type | TD |
Fuse (Internal or External) | Internal |
Country of origin | GB |
Marketing Bullet 1 | Ideal for loading bays |
Marketing Bullet 2 | Dimmable |
Marketing Bullet 3 | Continuously rated |
Order Unit | 1 |
MOQ | 1 |
Quantity Interval | 1 |
Status | Active |
Commodity Code | 85318070 |
GTIN | 5056711303096 |
RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
RoHS Last Verified Date | 8th August 2024 |
SVHC | No SVHC present |
SVHC Candidate List Date | 27th June 2024 |
