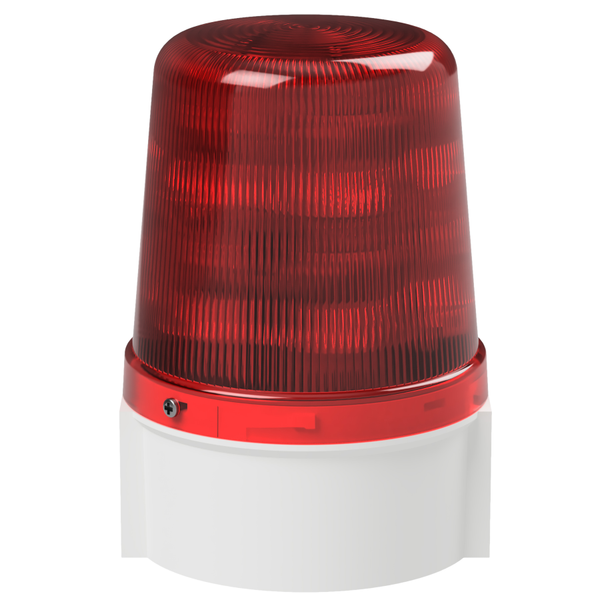

deegee Series B IP66 Ultra Power LED Strobe Beacon 24Vdc with White Base 135mm x 94mm ⌀ Red
Our ultra-power LED Strobe Beacon Lamps incorporate the latest LED technology and advanced optics, providing a low-power, long-lasting visual warning signal that mimics a traditional Xenon Strobe. This beacon features 16 modes of operation: Static (non-flashing), Standard Pulse (120fpm, 2Hz), Fade-pulse (30 & 60 fpm), Strobe Single Flash (SH) at 30, 60, or 90 fpm, Strobe Double Flash (DH) at 30, 60, or 90 fpm, Strobe Triple Flash (TH) at 30, 60, or 90 fpm, and Strobe Quad Flash (QH) at 60 fpm. Units from Series B and C can be connected together, along with the IAS-C Sounder, for an integrated signaling system. The circuitry is mounted securely to the base, with easy access to the wiring terminal block. Lenses are mounted with a bayonet fitting and O-ring seal, secured by a grub screw, with no additional fixings. All connections are protected by O-rings.
Additional information
| Nominal Supply Voltage (V) | 12-24 |
|---|---|
| Voltage Min (V) | 11 |
| Voltage Max (V) | 28 |
| Lens Colour | Red |
| Signal Colour | Red |
| Base Colour | White |
| Height (mm) | 135 |
| Diameter (mm) | 94 |
| Size (mm) | 135mm x 94mm ⌀ |
| IP Rating | IP66 |
| Mounting method | Surface mounting |
| User Selectable Functions | 16-Function |
| Light Source | LED |
| Number of Flash Functions | 16 |
| CE Approved | Yes |
| Temperature Limits (C) | -20 to +55 |
| Base Material | ABS |
| Lens Material | Polycarbonate |
| Country of origin | GB |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 1st March 2025 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
| Marketing Bullet 1 | The brightest LED Signal Beacon currently on the market |
| Marketing Bullet 2 | Ultra bright outdoor signaling, equivalent to 24 Joule Xenon Strobe, for wide area coverage |

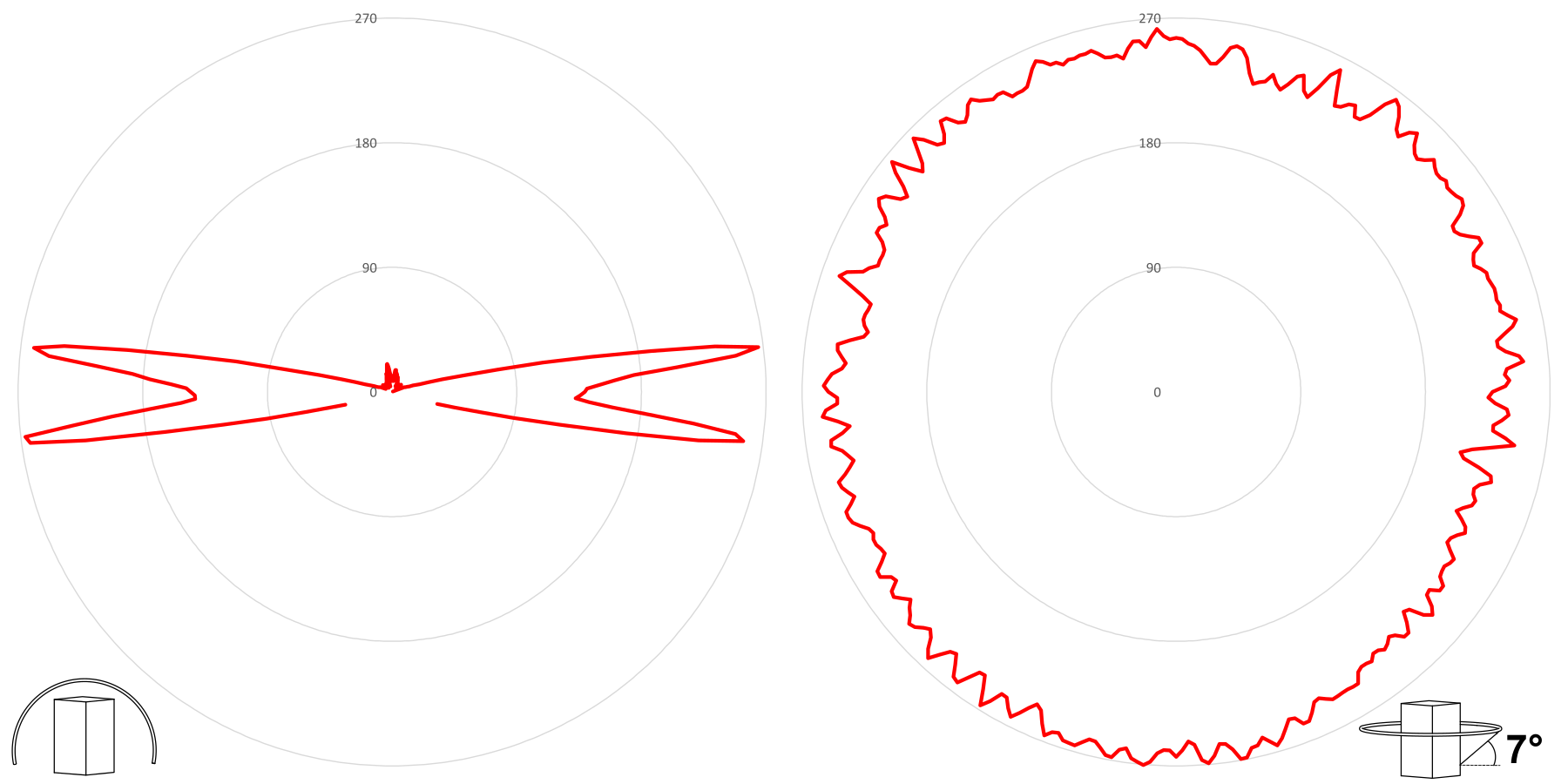

| Marketing Bullet 3 | Focused light emission in vertical plane to prevent dazzling personell nearby |
| Marketing Bullet 4 | 360 degree all-round visibility |
| Marketing Bullet 5 | Contiuously rated |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85318070 |
| Weight (kg) | 0.451 |
| Supply Type | DC |
| Nominal Current Draw (A) | 0.32-0.966 |
| Luminous Intensity (cd) | 270 (Strobe) |
| Fuse (A) | 1 |
| Fuse Type | TD |
| Fuse (Internal or External) | External |
| GTIN | 5060995749693 |
