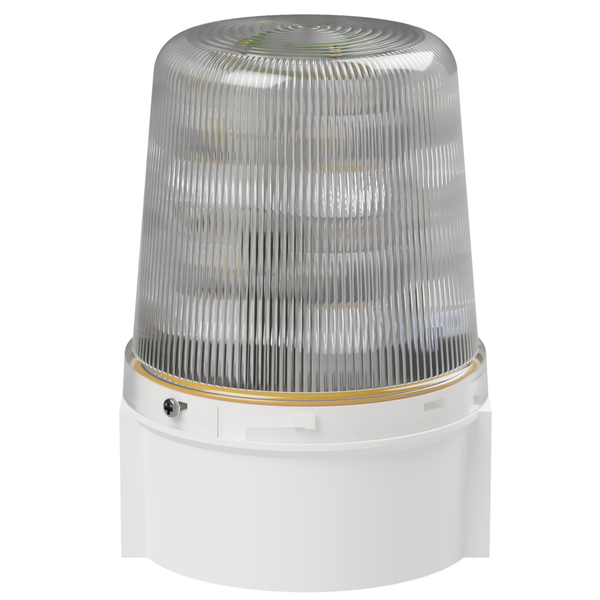

deegee Series B IP66 Ultra Power LED Strobe Beacon 12-24Vdc with White Base 135mm x 94mm ⌀ White
Our ultra-power LED Strobe Beacon Lamps feature the latest LED technology and high-performance optics, offering a low-power, long-life visual warning signal that replicates a traditional Xenon Strobe light. This multi-function LED beacon includes 16 operating modes: Static (non-flashing), Standard Pulse (120fpm, 2Hz), Fade-pulse (30 & 60 fpm), Strobe Single Flash (SH) at 30, 60, or 90 fpm, Strobe Double Flash (DH) at 30, 60, or 90 fpm, Strobe Triple Flash (TH) at 30, 60, or 90 fpm, and Strobe Quad Flash (QH) at 60 fpm. Units from Series B and C can be linked together, including the IAS-C Sounder, to provide an integrated signaling solution. The circuitry is mounted securely to the base with convenient access for wiring. Lenses are secured to the base using a bayonet fitting and O-ring seal, fastened with a grub screw, and no external fixings are required. O-rings seal all connections between components.
Additional information
| Nominal Supply Voltage (V) | 12-24 |
|---|---|
| Voltage Min (V) | 11 |
| Voltage Max (V) | 28 |
| Lens Colour | Clear |
| Signal Colour | White |
| Base Colour | White |
| Height (mm) | 135 |
| Diameter (mm) | 94 |
| Size (mm) | 135mm x 94mm ⌀ |
| IP Rating | IP66 |
| Mounting method | Surface mounting |
| User Selectable Functions | 16-Function |
| Light Source | LED |
| Number of Flash Functions | 16 |
| CE Approved | Yes |
| Temperature Limits (C) | -20 to +55 |
| Base Material | ABS |
| Lens Material | Polycarbonate |
| Country of origin | GB |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 1st March 2025 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
| Marketing Bullet 1 | The brightest LED Signal Beacon currently on the market |
| Marketing Bullet 2 | Ultra bright outdoor signaling, equivalent to 24 Joule Xenon Strobe, for wide area coverage |
| Marketing Bullet 3 | Focused light emission in vertical plane to prevent dazzling personell nearby |
| Marketing Bullet 4 | 360 degree all-round visibility |
| Marketing Bullet 5 | Contiuously rated |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85318070 |
| Weight (kg) | 0.451 |
| Supply Type | DC |
| Nominal Current Draw (A) | 0.384-0.916 |
| Luminous Intensity (cd) | 1000 (Strobe) |
| Fuse (A) | 1 |
| Fuse Type | TD |
| Fuse (Internal or External) | External |
| GTIN | 5060995749730 |
