deegee Series B IP66 Ultra Power LED Strobe Beacon 12-24Vdc with White Base 135mm x 94mm ⌀ Amber
Our ultra-power LED Strobe Beacon Lamps feature the latest LED technology and high-performance optics to provide a long-lasting, low-power visual warning signal that replicates the behavior of traditional Xenon Strobes. The beacon operates in 16 modes: Static (non-flashing), Standard Pulse (120fpm, 2Hz), Fade-pulse (30 & 60 fpm), Strobe Single Flash (SH) at 30, 60, or 90 fpm, Strobe Double Flash (DH) at 30, 60, or 90 fpm, Strobe Triple Flash (TH) at 30, 60, or 90 fpm, and Strobe Quad Flash (QH) at 60 fpm. Units from Series B and C can be joined with the IAS-C Sounder for a fully integrated signaling system. The circuitry is fixed to the base with easy access to wiring. Lenses are installed using a bayonet fitting and O-ring seal, fastened with a grub screw, and all enclosure connections are sealed with O-rings.
Additional information
| Nominal Supply Voltage (V) | 12-24 |
|---|---|
| Voltage Min (V) | 11 |
| Voltage Max (V) | 28 |
| Lens Colour | Amber |
| Signal Colour | Amber |
| Base Colour | White |
| Height (mm) | 135 |
| Diameter (mm) | 94 |
| Size (mm) | 135mm x 94mm ⌀ |
| IP Rating | IP66 |
| Mounting method | Surface mounting |
| User Selectable Functions | 16-Function |
| Light Source | LED |
| Number of Flash Functions | 16 |
| CE Approved | Yes |
| Temperature Limits (C) | -20 to +55 |
| Base Material | ABS |
| Lens Material | Polycarbonate |
| Country of origin | GB |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 1st March 2025 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
| Marketing Bullet 1 | The brightest LED Signal Beacon currently on the market |
| Marketing Bullet 2 | Ultra bright outdoor signaling, equivalent to 24 Joule Xenon Strobe, for wide area coverage |
| Marketing Bullet 3 | Focused light emission in vertical plane to prevent dazzling personell nearby |
| Marketing Bullet 4 | 360 degree all-round visibility |
| Marketing Bullet 5 | Contiuously rated |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85318070 |
| Weight (kg) | 0.451 |
| Supply Type | DC |
| Nominal Current Draw (A) | 0.384-0.916 |

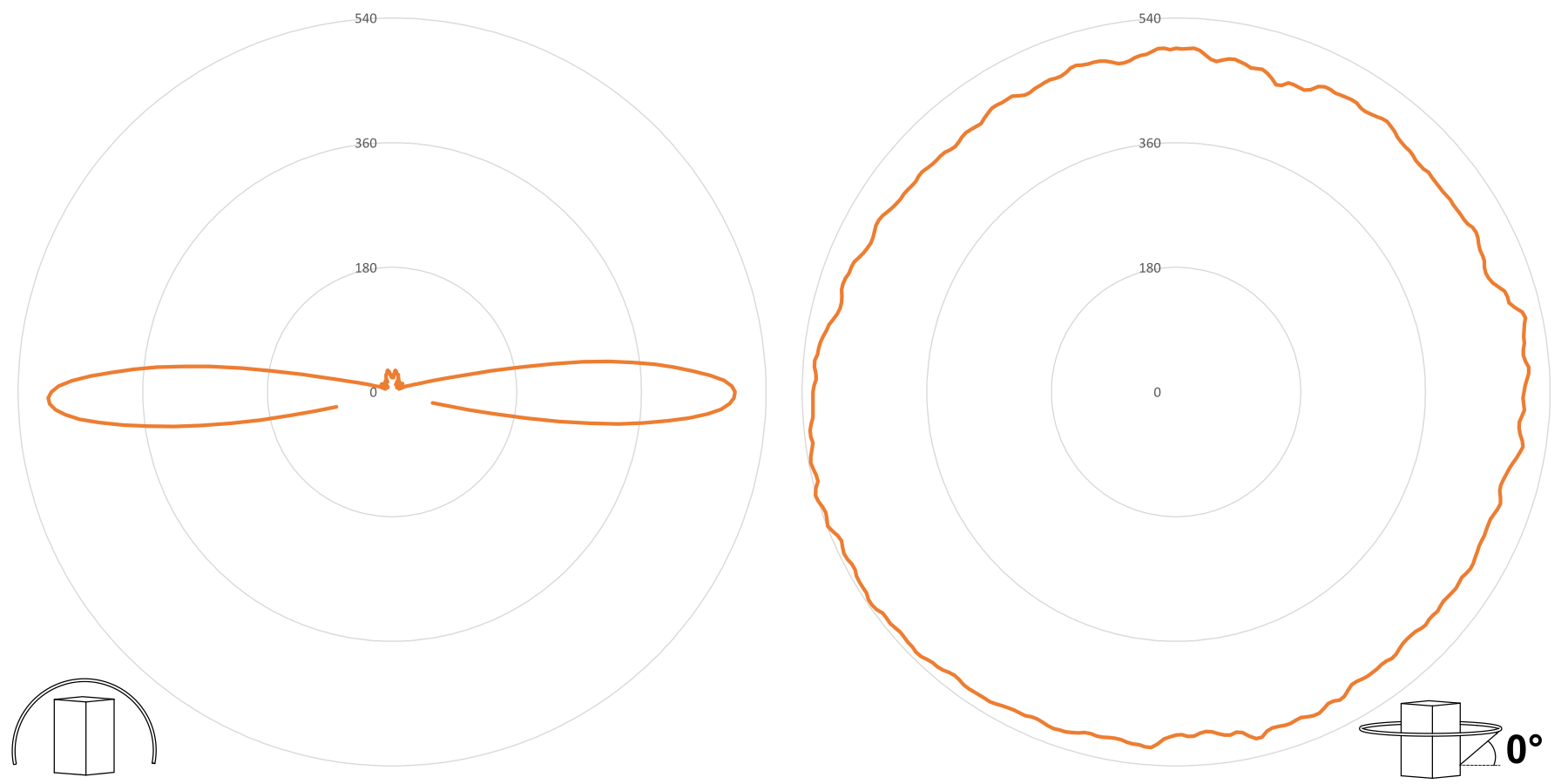

| Luminous Intensity (cd) | 550 (Strobe) |
| Fuse (A) | 1 |
| Fuse Type | TD |
| Fuse (Internal or External) | External |
| GTIN | 5060995749709 |
