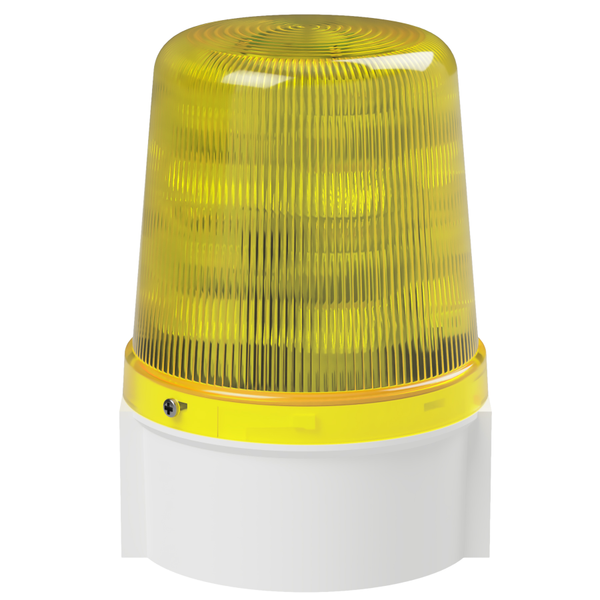

deegee Series B IP66 Ultra Power LED Strobe Beacon 115-230Vuc with White Base 135mm x 94mm ⌀ Yellow
Featuring the latest LED technology and advanced optics, our ultra-power LED Strobe Beacon Lamps provide an energy-efficient, long-lasting visual warning signal that emulates a traditional Xenon Strobe. This multi-function beacon offers 16 different modes: Static (non-flashing), Standard Pulse (120fpm, 2Hz), Fade-pulse (30 & 60 fpm), Strobe Single Flash (SH) at 30, 60, or 90 fpm, Strobe Double Flash (DH) at 30, 60, or 90 fpm, Strobe Triple Flash (TH) at 30, 60, or 90 fpm, and Strobe Quad Flash (QH) at 60 fpm. Multiple units from Series B and C can be connected, including the matching IAS-C Sounder, to create a fully integrated signaling system. The circuitry is securely mounted on the base, with easy access for wiring. Lenses are attached with a bayonet fitting and O-ring seal, held in place by a grub screw, and all connections are sealed by O-rings.
Additional information
| Nominal Supply Voltage (V) | 115-230 |
|---|---|
| Voltage Min (V) | 98 |
| Voltage Max (V) | 264 |
| Lens Colour | Yellow |
| Signal Colour | Yellow |
| Base Colour | White |
| Height (mm) | 135 |
| Diameter (mm) | 94 |
| Size (mm) | 135mm x 94mm ⌀ |
| IP Rating | IP66 |
| Mounting method | Surface mounting |
| User Selectable Functions | 16-Function |
| Light Source | LED |
| Number of Flash Functions | 16 |
| CE Approved | Yes |
| Temperature Limits (C) | -20 to +55 |
| Base Material | ABS |
| Lens Material | Polycarbonate |
| Country of origin | GB |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 1st March 2025 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
| Marketing Bullet 1 | The brightest LED Signal Beacon currently on the market |
| Marketing Bullet 2 | Ultra bright outdoor signaling, equivalent to 24 Joule Xenon Strobe, for wide area coverage |
| Marketing Bullet 3 | Focused light emission in vertical plane to prevent dazzling personell nearby |
| Marketing Bullet 4 | 360 degree all-round visibility |
| Marketing Bullet 5 | Contiuously rated |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85318070 |
| Weight (kg) | 0.453 |
| Supply Type | UC |
| Fuse (A) | 0.5 |
| Fuse Type | TD |
| Fuse (Internal or External) | External |
| Nominal Current Draw (A) | 0.052-0.183 |

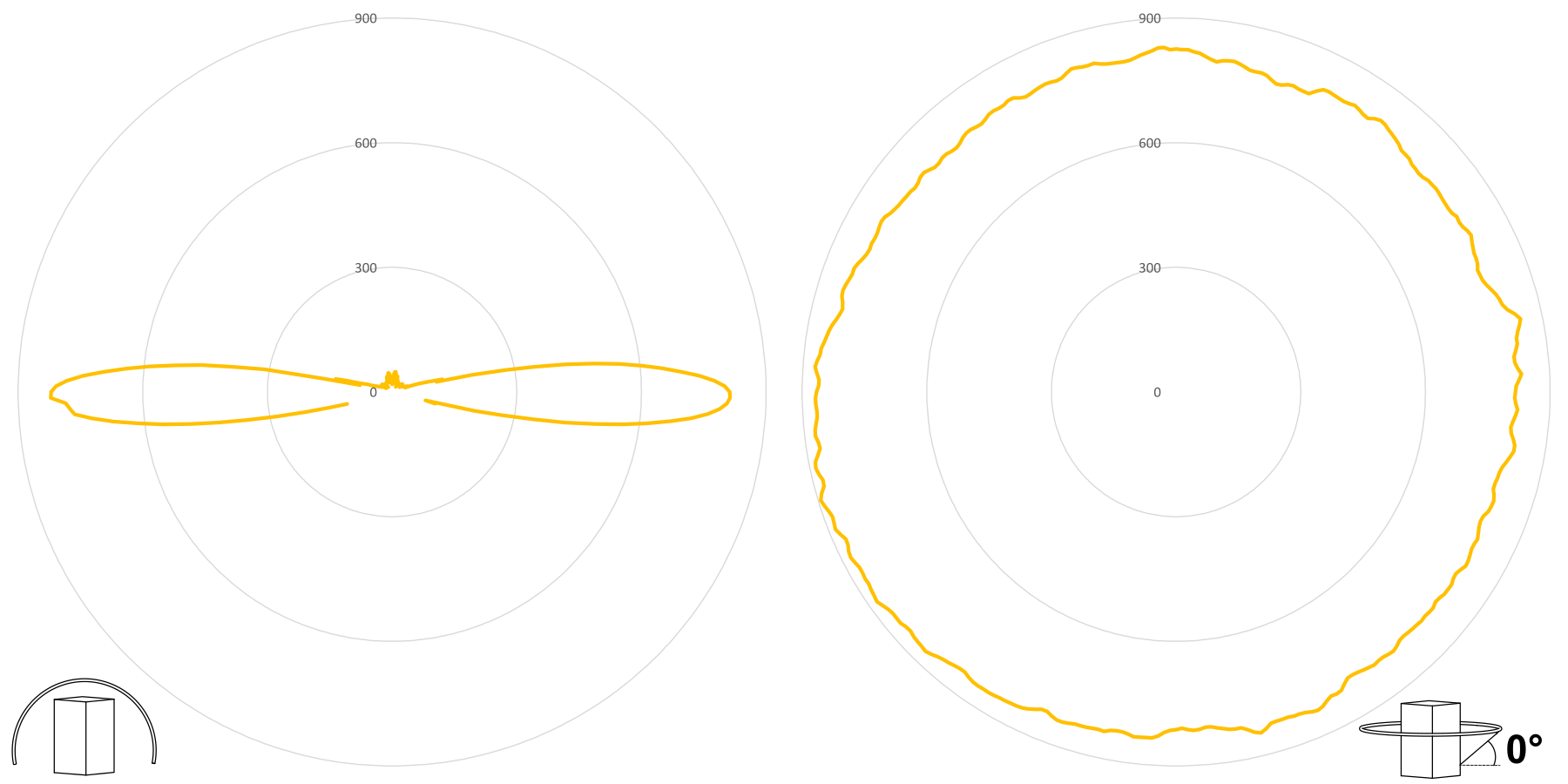

| Luminous Intensity (cd) | 900 (Strobe) |
| GTIN | 5060995749921 |
