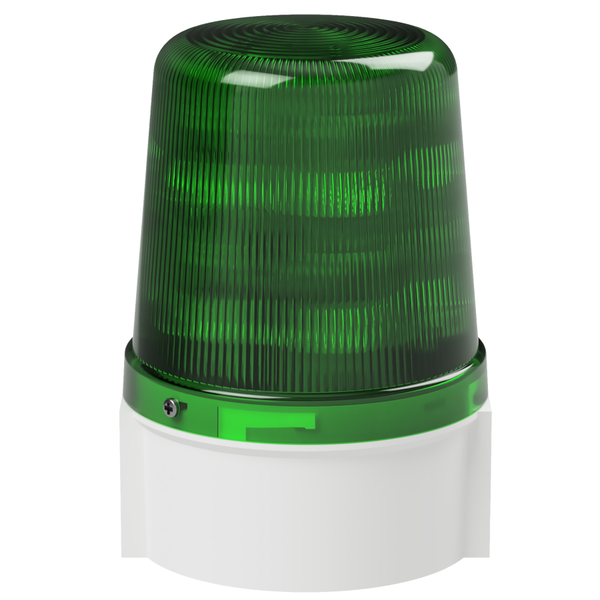

deegee Series B IP66 Ultra Power LED Strobe Beacon 115-230Vuc with White Base 135mm x 94mm ⌀ Green
Combining the latest LED technology with high-performance optics, our ultra-power LED Strobe Beacon Lamps provide a low-power, long-life visual warning signal that replicates the traditional Xenon Strobe effect. This beacon offers 16 operational modes: Static (non-flashing), Standard Pulse (120fpm at 2Hz), Fade-pulse (30 & 60 fpm), Strobe Single Flash (SH) at 30, 60 & 90 fpm, Strobe Double Flash (DH) at 30, 60 & 90 fpm, Strobe Triple Flash (TH) at 30, 60 & 90 fpm, and Strobe Quad Flash (QH) at 60 fpm. Series B and C units can be connected, including the matching IAS-C Sounder, for an integrated signaling system. The circuitry is fixed securely to the base with easy access to the terminal block. Lenses are fitted using a bayonet fitting with an O-ring seal and secured by a grub screw. All parts are sealed with O-rings, and no external fixings are needed.
Additional information
| Nominal Supply Voltage (V) | 115-230 |
|---|---|
| Voltage Min (V) | 98 |
| Voltage Max (V) | 264 |
| Lens Colour | Green |
| Signal Colour | Green |
| Base Colour | White |
| Height (mm) | 135 |
| Diameter (mm) | 94 |
| Size (mm) | 135mm x 94mm ⌀ |
| IP Rating | IP66 |
| Mounting method | Surface mounting |
| User Selectable Functions | 16-Function |
| Light Source | LED |
| Number of Flash Functions | 16 |
| CE Approved | Yes |
| Temperature Limits (C) | -20 to +55 |
| Base Material | ABS |
| Lens Material | Polycarbonate |
| Country of origin | GB |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 1st March 2025 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
| Marketing Bullet 1 | The brightest LED Signal Beacon currently on the market |
| Marketing Bullet 2 | Ultra bright outdoor signaling, equivalent to 24 Joule Xenon Strobe, for wide area coverage |
| Marketing Bullet 3 | Focused light emission in vertical plane to prevent dazzling personell nearby |
| Marketing Bullet 4 | 360 degree all-round visibility |
| Marketing Bullet 5 | Contiuously rated |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85318070 |
| Weight (kg) | 0.453 |
| Supply Type | UC |

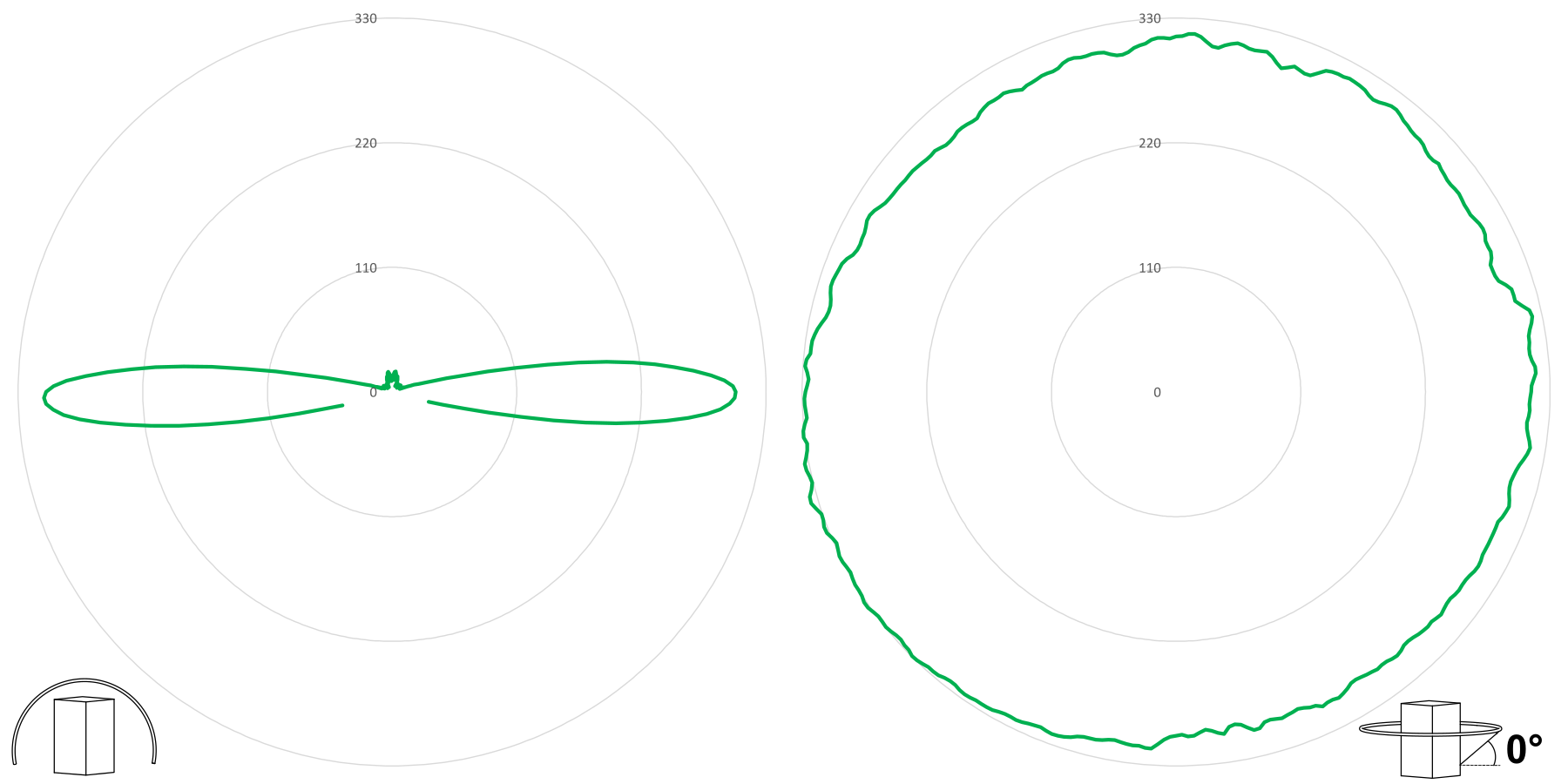

| Luminous Intensity (cd) | 340 (Strobe) |
| Fuse (A) | 0.5 |
| Fuse Type | TD |
| Fuse (Internal or External) | External |
| Nominal Current Draw (A) | 0.052-0.183 |
| GTIN | 5060995749891 |
