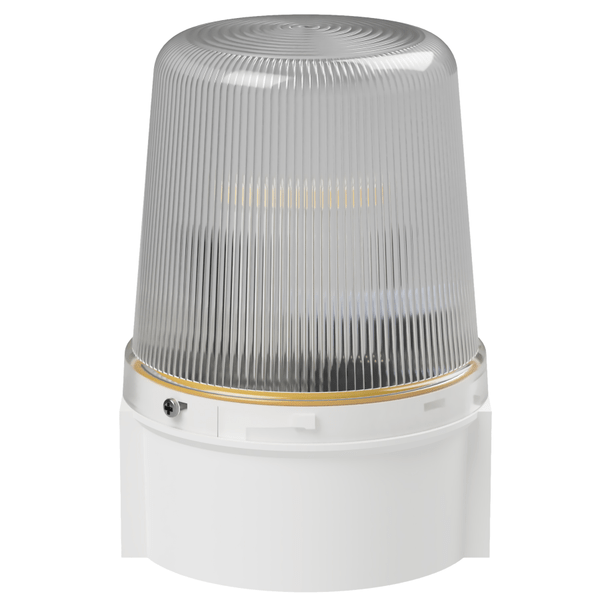

deegee Series B IP66 Standard Power LED Strobe Beacon 24-230Vuc with White Base 135mm x 94mm ⌀ White

Featuring advanced LED technology and high-quality optics, our standard-power LED Strobe Beacon Lamps provide a low-power, durable visual warning signal that mimics traditional Xenon Strobe lights. This multi-functional beacon includes 8 modes: Static (non-flashing), Standard Pulse (120fpm at 2Hz), Strobe Single Flash (SH) at 30, 60, or 90 fpm, and Strobe Double Flash (DH) at 30, 60, or 90 fpm. Series B and C units can be linked together, with the IAS-C Sounder included, for a complete signaling system. The circuitry is securely placed on the base with easy access to the terminal block. The lenses attach to the base using a bayonet fitting, with an O-ring seal, and a grub screw to hold them in place. There are no other external fasteners, and the connections between parts are sealed by O-rings.

SKU: LFB/UC/24-230/X5/CLEAR Category:

Additional information

Nominal Supply Voltage (V)

24-230

Voltage Min (V)

21

Voltage Max (V)

264

Lens Colour

Clear

Signal Colour

White

Base Colour

White

Height (mm)

135

Diameter (mm)

94

Size (mm)

135mm x 94mm ⌀

IP Rating

IP66

Mounting method

Surface mounting

User Selectable Functions

8-Function

Light Source

LED

Number of Flash Functions

8

CE Approved

Yes

Temperature Limits (C)

-20 to +55

Base Material

ABS

Lens Material

Polycarbonate

Country of origin

GB

RoHS

RoHS3 (EU DIRECTIVE 2015/863) compliant

RoHS Last Verified Date

1st March 2025

SVHC

No SVHC present

SVHC Candidate List Date

27th June 2024

Marketing Bullet 1

Innovative LED Strobe Beacon

Marketing Bullet 2

Standard-brightness signaling, equivalent to 5 Joule Xenon Strobe, for wide area coverage

Marketing Bullet 3

Focused light emission in vertical plane to prevent dazzling personell nearby

Marketing Bullet 4

360 degree all-round visibility

Marketing Bullet 5

Contiuously rated

Order Unit

1

MOQ

1

Quantity Interval

1

Status

Active

Commodity Code

85318070

Weight (kg)

0.295

Supply Type

UC

Nominal Current Draw (A)

0.018-0.126

Luminous Intensity (cd)

78

Fuse (A)

0.5

Fuse Type

TD

Fuse (Internal or External)

External

GTIN

5060995749792
