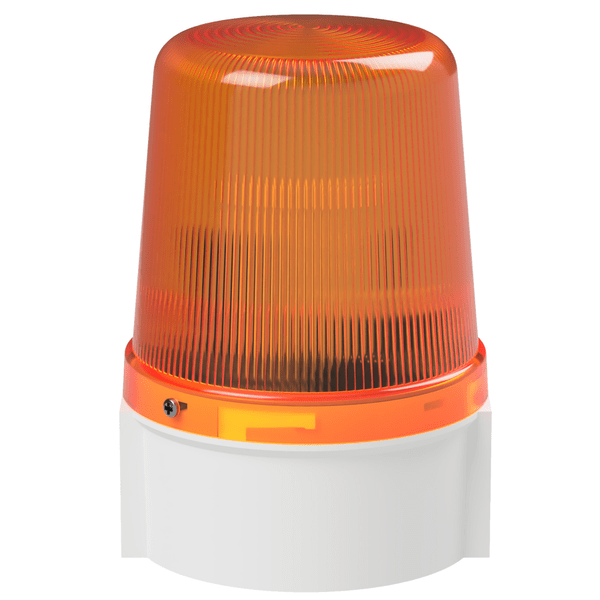

deegee Series B IP66 Standard Power LED Strobe Beacon 24-230Vuc with White Base 135mm x 94mm ⌀ Amber

With cutting-edge LED technology and high-performance optics, our standard-power LED Strobe Beacon Lamps offer a low-power, long-lasting visual warning signal that mimics the traditional Xenon Strobe effect. The multi-function beacon includes 8 modes: Static (non-flashing), Standard Pulse (120fpm at 2Hz), Strobe Single Flash (SH) at 30, 60, or 90 fpm, and Strobe Double Flash (DH) at 30, 60, or 90 fpm. Multiple units from Series B and C can be linked with the IAS-C Sounder to provide a complete signaling system. The circuitry is mounted securely on the base, with easy access to the terminal block for wiring. Lenses are secured with a bayonet fitting and O-ring seal, fastened by a grub screw. All connections are protected by O-rings, with no external fixings required.

SKU: LFB/UC/24-230/X5/AMBER Category:

Additional information

Nominal Supply Voltage (V)

24-230

Voltage Min (V)

21

Voltage Max (V)

264

Lens Colour

Amber

Signal Colour

Amber

Base Colour

White

Height (mm)

135

Diameter (mm)

94

Size (mm)

135mm x 94mm ⌀

IP Rating

IP66

Mounting method

Surface mounting

User Selectable Functions

8-Function

Light Source

LED

Number of Flash Functions

8

CE Approved

Yes

Temperature Limits (C)

-20 to +55

Base Material

ABS

Lens Material

Polycarbonate

Country of origin

GB

RoHS

RoHS3 (EU DIRECTIVE 2015/863) compliant

RoHS Last Verified Date

1st March 2025

SVHC

No SVHC present

SVHC Candidate List Date

27th June 2024

Marketing Bullet 1

Innovative LED Strobe Beacon

Marketing Bullet 2

Standard-brightness signaling, equivalent to 5 Joule Xenon Strobe, for wide area coverage

Marketing Bullet 3

Focused light emission in vertical plane to prevent dazzling personell nearby

Marketing Bullet 4

360 degree all-round visibility

Marketing Bullet 5

Contiuously rated

Order Unit

1

MOQ

1

Quantity Interval

1

Status

Active

Commodity Code

85318070

Weight (kg)

0.295

Supply Type

UC

Nominal Current Draw (A)

0.018-0.126

Luminous Intensity (cd)

50

Fuse (A)

0.5

Fuse Type

TD

Fuse (Internal or External)

External

GTIN

5060995749761
