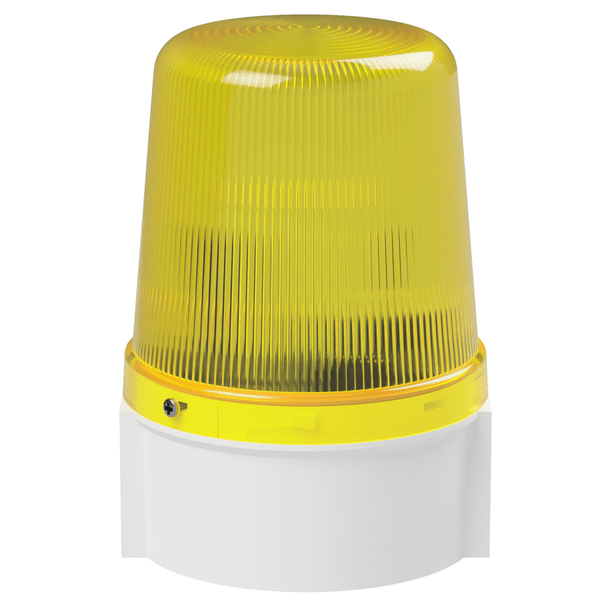

deegee Series B IP66 Standard Power LED Strobe Beacon 12-24Vuc with White Base 135mm x 94mm ⌀ Yellow
Our standard-power LED Strobe Beacon Lamps use the latest LED technology, paired with advanced optics, to deliver a low-power, long-lasting visual warning signal that simulates the effect of a traditional Xenon Strobe light. The multi-functional beacon offers 8 operational modes: Static (non-flashing), Standard Pulse (120fpm, 2Hz), Strobe Single Flash (SH) at 30, 60, or 90 fpm, and Strobe Double Flash (DH) at 30, 60, or 90 fpm. Multiple units from the Series B and C ranges can be connected, along with the matching IAS-C Sounder, for an integrated signaling solution. The circuitry is mounted securely to the base with easy access to the terminal block for wiring. The lenses are attached using a bayonet fitting and O-ring seal, secured by a grub screw, with no other external fixings. All enclosure connections are protected by O-rings.
Additional information
| Nominal Supply Voltage (V) | 12-24 |
|---|---|
| Voltage Min (V) | 11 |
| Voltage Max (V) | 28 |
| Lens Colour | Yellow |
| Signal Colour | Yellow |
| Base Colour | White |
| Height (mm) | 135 |
| Diameter (mm) | 94 |
| Size (mm) | 135mm x 94mm ⌀ |
| IP Rating | IP66 |
| Mounting method | Surface mounting |
| User Selectable Functions | 8-Function |
| Light Source | LED |
| Number of Flash Functions | 8 |
| CE Approved | Yes |
| Temperature Limits (C) | -20 to +55 |
| Base Material | ABS |
| Lens Material | Polycarbonate |
| Country of origin | GB |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 1st March 2025 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
| Marketing Bullet 1 | Innovative LED Strobe Beacon |
| Marketing Bullet 2 | Standard-brightness signaling, equivalent to 5 Joule Xenon Strobe, for wide area coverage |
| Marketing Bullet 3 | Focused light emission in vertical plane to prevent dazzling personell nearby |
| Marketing Bullet 4 | 360 degree all-round visibility |
| Marketing Bullet 5 | Contiuously rated |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85318070 |
| Weight (kg) | 0.293 |
| Supply Type | UC |
| Nominal Current Draw (A) | 0.08-0.272 |

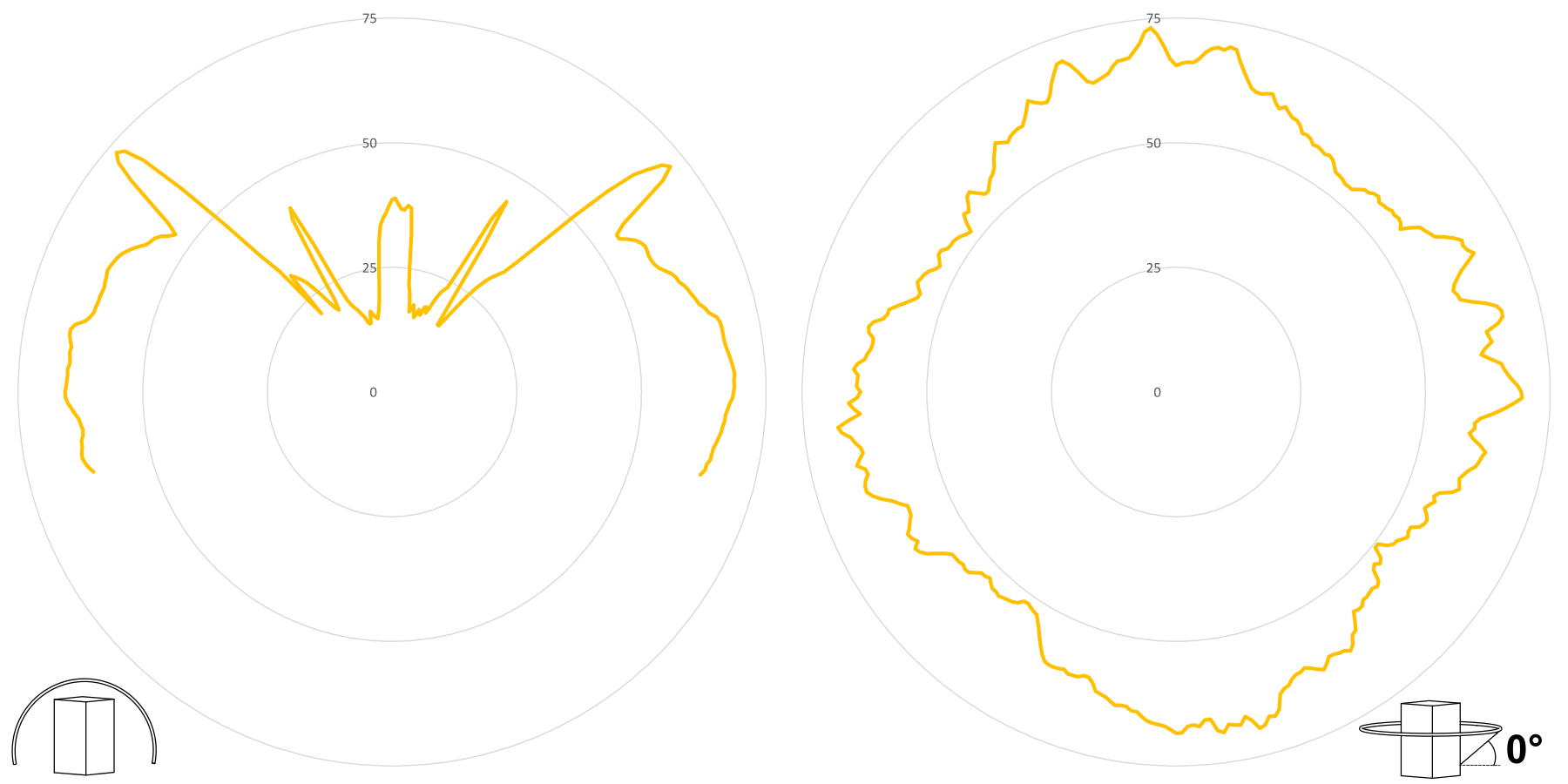

| Luminous Intensity (cd) | 73 |
| Fuse (A) | 0.5 |
| Fuse Type | TD |
| Fuse (Internal or External) | External |
| GTIN | 5060995749624 |
