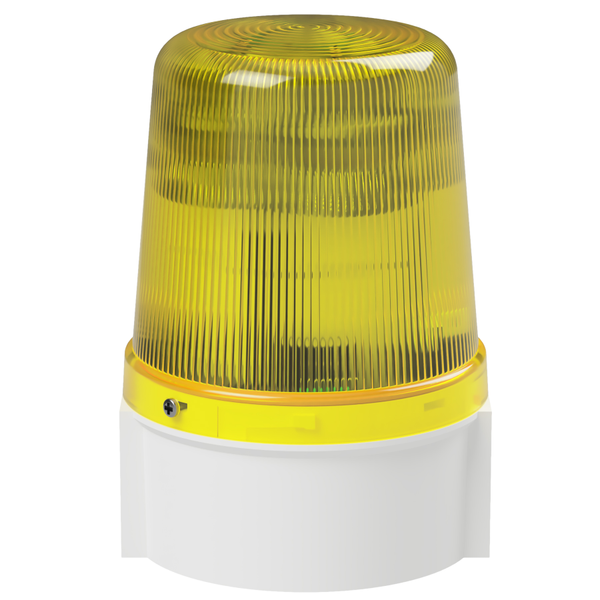

deegee Series B IP66 High Power LED Strobe Beacon 12-24Vuc with White Base 135mm x 94mm ⌀ Yellow
Equipped with cutting-edge LED technology and high-performance optics, our high-power LED Strobe Beacon Lamps offer a low-energy, long-lasting visual warning signal that simulates traditional Xenon strobes. They offer 16 modes, such as Static, Pulsed, and various Flash rates, including Single, Double, Triple, and Quad flashes. These beacons can be integrated with other Series B or C units and the IAS-C Sounder for a complete signalling system.
Additional information
| Nominal Supply Voltage (V) | 12-24 |
|---|---|
| Voltage Min (V) | 11 |
| Voltage Max (V) | 28 |
| Lens Colour | Yellow |
| Signal Colour | Yellow |
| Base Colour | White |
| Height (mm) | 135 |
| Diameter (mm) | 94 |
| Size (mm) | 135mm x 94mm ⌀ |
| IP Rating | IP66 |
| Mounting method | Surface mounting |
| User Selectable Functions | 16-Function |
| Light Source | LED |
| Number of Flash Functions | 16 |
| CE Approved | Yes |
| Temperature Limits (C) | -20 to +55 |
| Base Material | ABS |
| Lens Material | Polycarbonate |
| Country of origin | GB |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 1st March 2025 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
| Marketing Bullet 1 | Innovative LED Strobe Beacon |
| Marketing Bullet 2 | High-brightness signaling, equivalent to 11 Joule Xenon Strobe, for wide area coverage |
| Marketing Bullet 3 | Focused light emission in vertical plane to prevent dazzling personell nearby |
| Marketing Bullet 4 | 360 degree all-round visibility |
| Marketing Bullet 5 | Contiuously rated |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85318070 |
| Weight (kg) | 0.394 |
| Supply Type | UC |
| Nominal Current Draw (A) | 0.188-0.272 |
| Luminous Intensity (cd) | 600 |
| Fuse (A) | 0.5 |
| Fuse Type | TD |
| Fuse (Internal or External) | External |
| GTIN | 5060995749686 |
