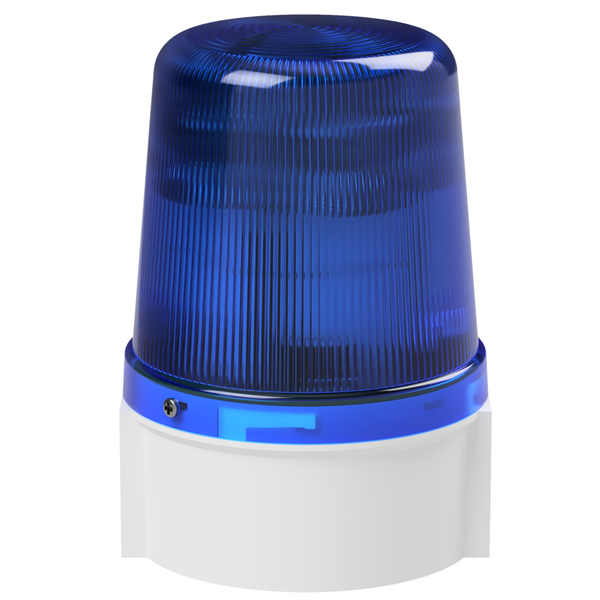

deegee Series B IP66 High Power LED Strobe Beacon 12-24Vuc with White Base 135mm x 94mm ⌀ Blue
Our high-power LED Strobe Beacon Lamps utilise latest technology LED’s, combined with high-tech optics, to provide a generally low power long life visual warning signal mimicking a traditional Xenon Strobe product.
Multi-function Strobe/Pulsed/Static LED Beacon with 16 operating modes. Static – non-flashing, Standard Pulse – 120fpm (2Hz), Fade-pulse – 30 & 60 fpm, Strobe Single Flash (SH) at 30, 60 & 90 fpm, Strobe Double Flash (DH) at 30, 60 & 90 fpm, Strobe Triple Flash (TH) at 30, 60 & 90 fpm, and Strobe Quad Flash (QH) at 60 fpm.
Multiple units from both the Series B and Series C ranges can be joined together, including the matching IAS-C Sounder, to provide an integrated signalling system.
Circuitry is fixed to the base, with convenient access to the terminal block for wiring. Lenses are fitted to the bases by bayonet fitting with an O-ring seal, secured by a single securing grub screw. There are no other external fixings, and all connections between enclosure parts are protected by O-rings.
Additional information
| Nominal Supply Voltage (V) | 12-24 |
|---|---|
| Voltage Min (V) | 11 |
| Voltage Max (V) | 28 |
| Lens Colour | Blue |
| Signal Colour | Blue |
| Base Colour | White |
| Height (mm) | 135 |
| Diameter (mm) | 94 |
| Size (mm) | 135mm x 94mm ⌀ |
| IP Rating | IP66 |
| Mounting method | Surface mounting |
| User Selectable Functions | 16-Function |
| Light Source | LED |
| Number of Flash Functions | 16 |
| CE Approved | Yes |
| Temperature Limits (C) | -20 to +55 |
| Base Material | ABS |
| Lens Material | Polycarbonate |
| Country of origin | GB |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 1st March 2025 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
| Marketing Bullet 1 | Innovative LED Strobe Beacon |
| Marketing Bullet 2 | High-brightness signaling, equivalent to 11 Joule Xenon Strobe, for wide area coverage |
| Marketing Bullet 3 | Focused light emission in vertical plane to prevent dazzling personell nearby |
| Marketing Bullet 4 | 360 degree all-round visibility |
| Marketing Bullet 5 | Contiuously rated |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85318070 |
| Weight (kg) | 0.394 |
| Supply Type | UC |
| Nominal Current Draw (A) | 0.188-0.272 |
| Luminous Intensity (cd) | 200 |
| Fuse (A) | 0.5 |
| Fuse Type | TD |
| Fuse (Internal or External) | External |
| GTIN | 5060995749662 |
